A breve istruzioni in Italiano!

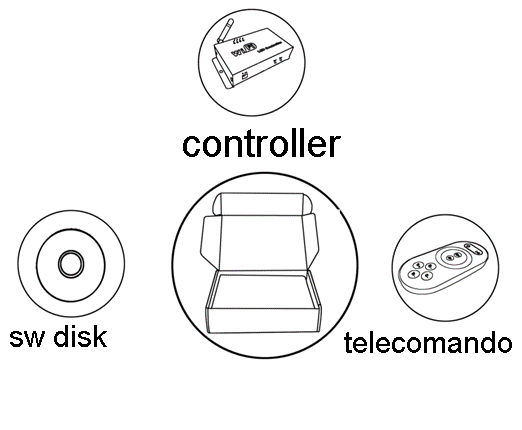

Product specification

telecomando

Product Summarize

dati led


telecomando

Product summarize

it is one type controller which integration the newest wifi technical in the market. It makes the LED control more convenience, more hommization. We can use an Android system or IOS system mobile phone to install control software, then it can control LED, this is the wishes of every customer.

Use WiFi technology can make our control range more wider, can get rid of narrow space constraint, in building can control more than 50 m, in outdoor can control more than 100m.

In the condition of not use the mobile software, also can use the remote control to control, very convenience, bring many choices for you.

Technical Parameters

Remote control technical parameters

Working temperature-20-60 Celsius

Power supply methodAAA*3

Standby current3uA

Working current200uA

Remote control distanceabout 50m



Software technical parameters

Runtime platform:Android version support Android system (better one can support Samsung, HTC), IOS version support IOS system, equipment must have WiFi function.

Byte: Android version(622K)IOS version(581K).

Language: English

Free, green, no plug-ins

Controller technical parameters

Working voltage: DC5--24V

Output control: can flexible control 3 channel, 2 channel, 1 channel LED lamps.

Output current: 4A*3

Connect mode: common anode

External dimension: L107*W65*H30mm

net weight: 246g

gross weight: 330g



LED-WiFi Controller Function Instruction

Working state instruction

tabellina led

Function key function

     Function key is a composite button, it have switch and mode change function.

Function instruction: long-time(more than 2s): on off;

                Short press(less than 1s): mode change.

Remote control function instruction

samsung



1on/off key          2pause key 3mode+      4mode-

5、Color pulley key            6brightness+           7brightness-

                8speed+   9speed-

1Touch remote panel have 64 touch button(point), each button function as below:



1on/off key, any state, can turn on or turn off controller output;



2pause key, under dynamic mode, can make the controller stop current state;



3this key have 2 function:

  • mode add key, so when the current control mode is pulley mode(color), if it need to realize the mode(color) in controller, can press this button.

  • mode switch key, so when the current control mode is M key mode, can switch the regulation mode(color) in M+ key mode table.

4This key have 2 function:

  • mode minus key, so when the current control mode is pulley mode(color), if it need to realize the mode(color) in controller, can press this button.

  • mode switch key, so when the current control mode is M key mode, can switch the regulation mode(color) in M- key mode table.



5、output brightness control key, every time you press this button, the brightness

   series add 1, altogether 100 levels;



6、output brightness control key, every time you press this button, the brightness

   series minus 1, altogether 100 levels;



7、output speed control key, every time you press this button, the speed series add

   1, altogether 100 levels;



8、output speed control key, every time you press this button, the speed series

   minus 1, altogether 100 levels;





9Color pulley touch button, static mode choose key, up to 55 touch point.

  This key have 2 function:

  • pulley static color choose button, so when the current control mode is M key mode(color), if need to realize the static color on pulley, can press this button.

  • pulley color switch key: can switch from 55 static color(pulley shows color).

2Power management: Stop using remote control more than 20 s, remote control will automatically into standby mode(the state can not touch),to extend the battery life for use; shake the remote mildly remote return to work station(the state can touch).

     Remark: This remoter just apply to RGB model.



Built-in mode form of controller

The mode form of RGB Control:

dati

2. The mode form of color temperature control:

tabella

3. The mode form of dimming Control:

dati

Connect two channels LED instruction

epiled

When connect three channels LED, you should put the Dream Color software switch to CD mode to use,only under this mode,you can control the LED's color temperature,brightness and color temperature shortcut key settings.Color disk adjust the color temperature(meanwhile top left CW,WW numerical with change,brightness item adjust bright,M"key set the special color temperature state.

Connect one channel LED instruction

epiled



When connect three channels LED, you should put the Dream Color software switch to CD mode to use,under this mode,use color disk control the LED's brightness,Adjust process can be seen in the upper left corner NM numerical with change.
